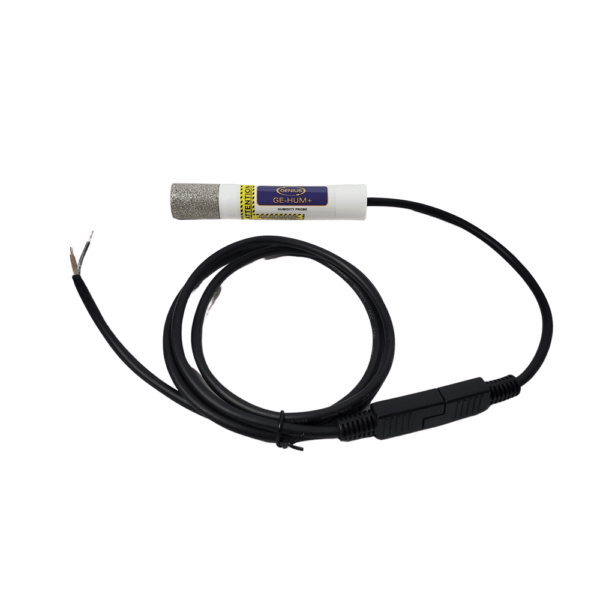

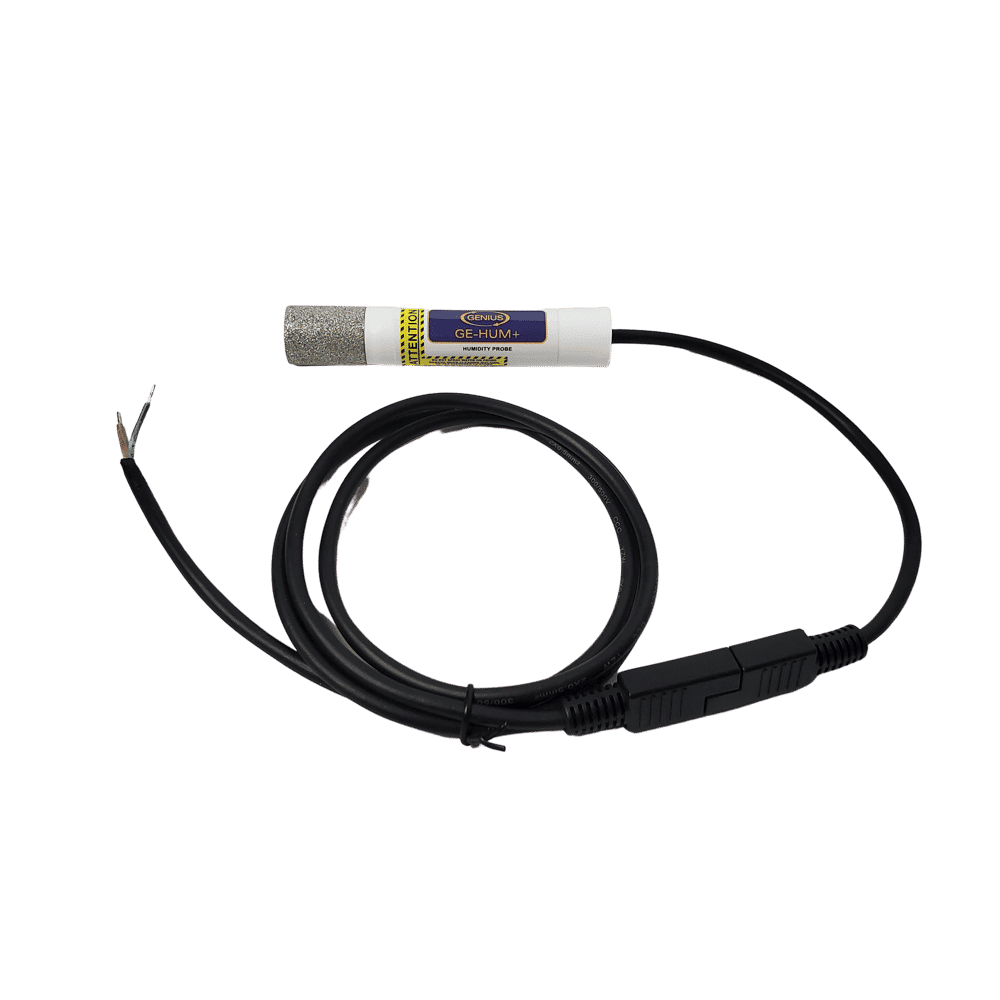

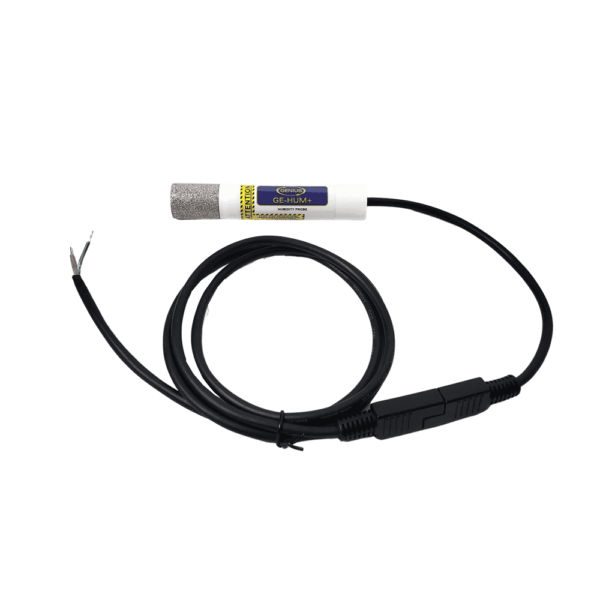

Humidity Probe Description
Using its integrated and highly accurate sensor, the GE-HUM+ measures the relative humidity from 0 to 100RH% and temperature from -40 to +122ºF (-40 to +50ºC).The GE-HUM+ has been specially designed to be used inside or outside livestock buildings.
Its detachable gold-plated connector prevents its oxydation and allows the probe to be safely removed during pressure wash of the building.
A sintered stainless steel filter prevents dust from reaching the sensor.Installation is simplified through the use of 2-wire communication cabling of a maximum length of 820 feet (250 m).
Humidity
- Reading range: 0-100RH%
- Precision:TYP ±2RH%, MAX ±3RH% @77ºF(25ºC) (20RH% to 80RH%)
- Stability:Drift of 0.5RH%/year
- Resolution:1 RH%
- Response time: 4 minutes (used as exterior sensor) 10 seconds (used as interior sensor)
Temperature
- Reading range: -40 to +122ºF (-40ºC to +50ºC)
- Precision:TYP ±0.5ºF(±0.3ºC), MAX ±0.7ºF (±0.4ºC) (from 5ºC to 60ºC)
- Resolution: ±0.1º
- Response time: 4 minutes (used as exterior sensor) 10 seconds (used as interior sensor)
Dimensions
- Length:6.8’’ (17 cm)
- Cable length: 15 feet (5 m)
- Weight:0.5 lbs. (250 g)
IP 54 Protection (Against dust/Water jets)
